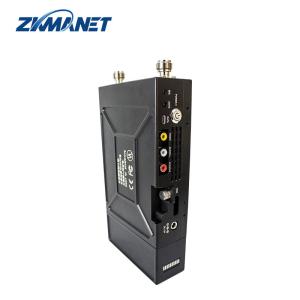

The ZKManet1241T is a compact and portable, HD and stable image transmitting manpack transmitter. It utilizes COFDM modulation technology to capture and transmit high-quality images in real-time even in non-line-of-sight situations and during high-speed movement. The transmission process encrypts images and data, and it can be used in conjunction with the ZKManet1002R receiver. It is particularly suitable for use in complex environments with obstacles, making it ideal for security operations at major events, emergency rescue missions, and daily operations of public security and armed police forces.
* COFDM modulation and H.264 compression
* HDMI and CVBS dual video inputs
* Supports two-way voice intercom
* Range up to 1.5-3km NLOS and 5-10km LOS
* 60-100ms low link latency
* Strong anti-interference ability
* Manpack design for easy operation
* Up to 5 hours battery life
* Rugged aluminum alloy housing
| Model | ZKManet1241T | Brand | ZKMANET |
| RF Parameters | Frequency | Video: 300MHz-2.7GHz customizable;
Audio: 145Mhz |
| Modulation | QPSK(4QAM)/16QAM/64QAM |
| Output Power | 2W |
| Bandwidth | 2-8MHz |
| Encryption | AES |
| Range | 1.5-3km(NLOS); 5~10km(LOS) |
| RF Interface | N-F |
| Video/Audio Parameters | Video Input | HD:HDMI |
| SD:RCA |
| Video Modulation | HD:1080P,1080i,720P,720i |
| SD:P/N |
| Video Compression | H.264 |
| Audio Interface | K-headphone microphone interface |
| Physical/Environment | Dimensions | 220*120*45(mm)(L×W×H)(w/ battery) |
| Weight | 1.3kg(w/ battery) |
| Working Temp | -20ºC~+65ºC |
| Electronic Parameters | Power Supply | DC 12V |
| Battery Capacity | 4500mAh |
| Power Consumption | <237dBm |
- Battery Indicator
- Power Input Interface
- HDMI Input Interface
- AV Input Interfaces - Audio Left, Audio Right and Video (CVBS)
- Data Interface (Reserved)
- Power Switch Button
- MIC Interface (Intercom)
- RF Antenna Interface - N Female, for Video
- Control Panel - 6 Digit LED 7-Segment Display
- RF Antenna Interface - N Female, for Data
